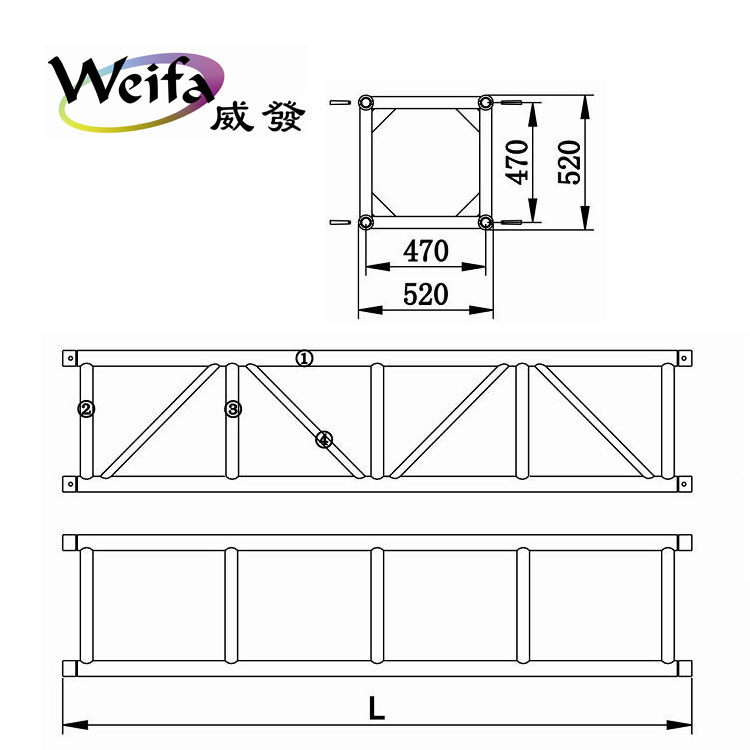

E520T
Parameters
Demonstration
Video




Span in meter(m) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Total load in(kg) 800 700 633 588 561 522 499 473 422 408 387 360 333 290 220
Distrib.load in(kg/m) 520 473.2 362.6 284.3 230.2 168 110 79.8 68.1 58.3 48.5 38.7 35 30 20

Excellent quality, Weifa manufacturing
Professional engineering and technical team, one-stop service, exclusive design, worry-free after-sales!
