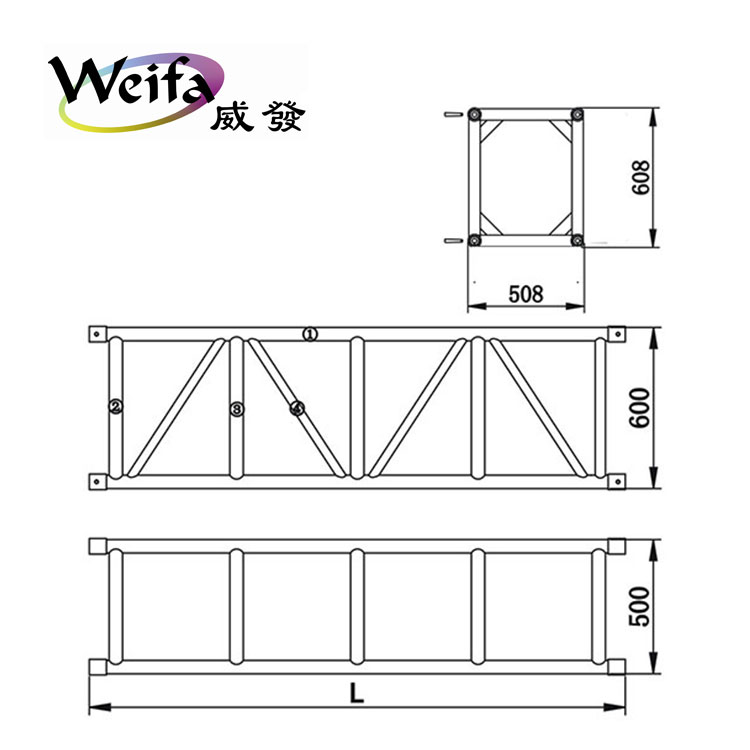

E5060
Parameters

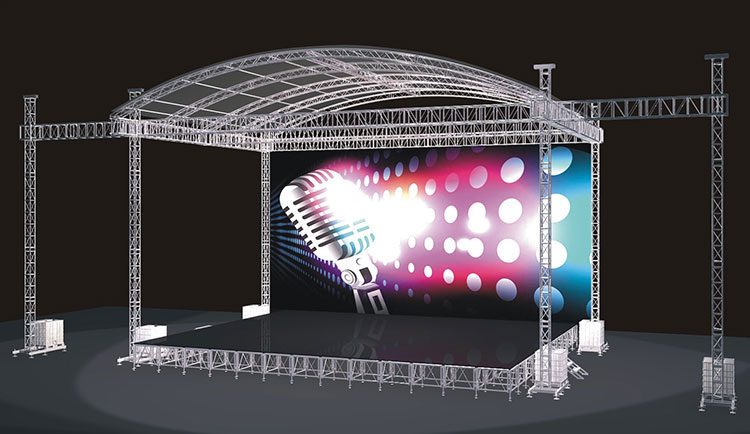

Demonstration
Video




Span in meter(m) 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Total load in(kg) 1950 1530 1480 1350 1215 1180 1082 948 883 832 756 679 584 489 394
Distrib.load in(kg/m) 419 345 295 285 197 164 143 118 90.7 66.6 53.6 40.6 32.6 26.4 22.5




Excellent quality, Weifa manufacturing
Professional engineering and technical team, one-stop service, exclusive design, worry-free after-sales!
