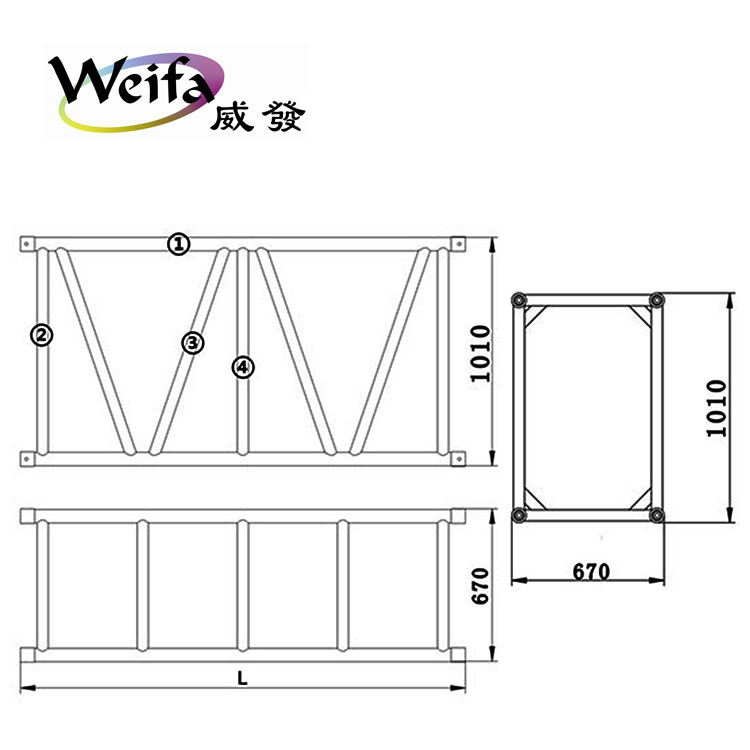

E1010/60
Parameters
Demonstration
Video
| Span in meter(m) |
16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| Total load in(kg) | 5123 | 4803 | 4295 | 3866 | 3500 | 3213 | 2941 | 2700 | 2501 | 2318 | 2213 | 2003 | 1866 | 1741 | 1586 |
| Distrib.load in(kg/m) | 662.5 | 566.6 | 452 | 363.6 | 308.3 | 259.1 | 222.8 | 192.6 | 165.1 | 144.4 | 130.2 | 117.4 | 95 | 88.1 | 75.4 |
E1010/60
E1010/60
